CT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump Truck

Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump Truck

  • 1
  • 2
  • 3

Brand Name : CHITIAN

Model Number : CT890

Certification : ISO/CCC

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 pieces per month

Delivery Time : 30-45 work days

Packaging Details : Nude

Drive Wheel : 6X4

Horsepower : 251 - 350hp

Transmission Type : Manual

Fuel Type : Diesel

Wheel base : 3650+1580mm

Engine : WP12G430E31

Capacity (Load) : 51 - 60t

Emission Standard : Euro 3

Contact Now



CT890 China Off-road Heavy Duty Mining Dump Truck 50 ton Euro 3



Product Description



- The Mining dump truck equipped with 500x240mm large brake shoes with the most reliable brake power, providing strong safety protection on complex industrial and mining construction sites.

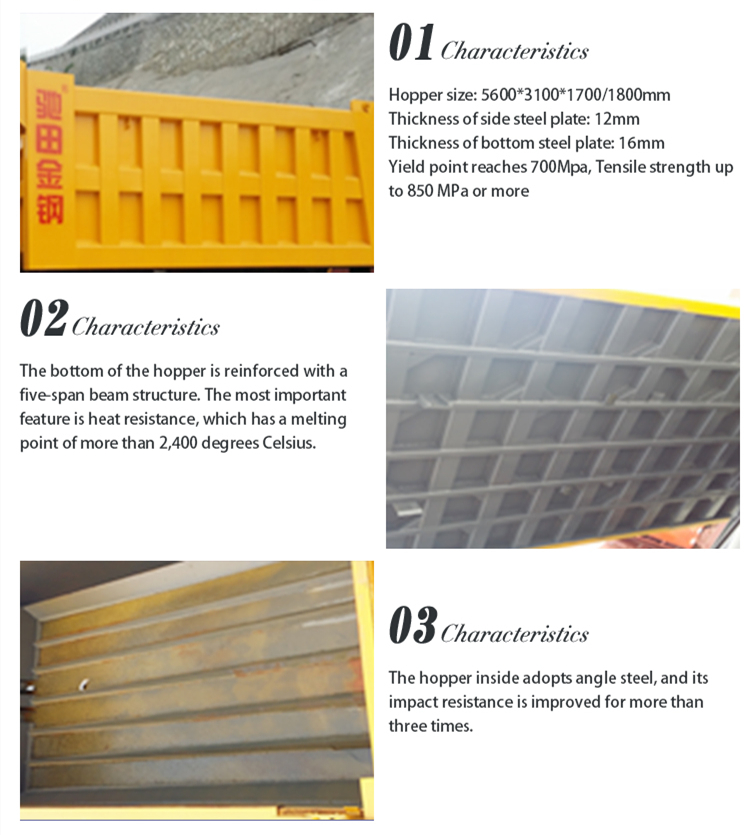

- The bottom plate of the hopper adopts a reinforced five-span beam structure and angle steel is placed inside the hopper, the collision resistance is increased by more thanthree times.



- Standard wheeled deceleration cast steel double rear axle, large speed ratio, widened track, large speed ratio produces strong power, large track improves vehicle lateral stability, and adapts to various complicated and harsh road conditions.



- Fast gearbox and other internationally renowned transmission products are selected, which can show superior performance in complex construction sites.



- The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.



- The reversible panoramic wide cab provides a spacious driving space, making driving more comfortable, a broader perspective.



- Increased strengthened brake air reservoir makes brake performance stronger and more flexible, higher safety.



- The reinforced thickened leaf spring provides a powerful guarantee for the vehicle's superior load capacity, reflecting the extraordinary stability.



- Exhaust gas heating device effectively prevents the freezing of cargo and hopper during the winter construction of the vehicle in the alpine region, which is convenient for dumping.



- Adopting special thicken steel rim and special tire for construction machinery.



- Scientific overall configuration greatly enhance the climbing ability of the vehicle. The gradeability up to 38% under fully loaded conditions.



- The standard configured Vehicles can have an attendance rate of up to 90% in the standard load condition.



Product Parameter



Model CT870 CT890 CT8100
Drive Style 6×4 6×4 6×4
Curb Weight 25200 27000 28000
Rated loading capacity 45000 53000 70000
Rated Total Weight 70000 80000 98000
Length (mm) 8680 8850 8800
Width (mm) 3150,3200 3350 3350
Height (mm) 3750 3800 4000
Minimum ground clearance (mm) 333 350 350
Minimum turning radius (m) 11.5 12 25
Maximum climbing ability (%) 36 35 36
Approach angle / departure angle (°) 27.5/45 27.5/45 27.5/45
Wheelbase (mm) 3560+1520 3650+1580 3650+1580
Wheel distance (front/back) (mm) 2550/2236 2731/2550 2727/2554
Cab Offset cab Offset cab Offset cab
Engine Model WP12G430E31 WP12G430E31 WP12G430E31
Displacement(L) 11.596 11.596 11.596
Rated power (kW/PS) 316 316 316
Maximum torque / speed (N.r / min) 2060/(1000-1400) 2060/(1000-1400) 2060/(1000-1400)
Fuel tank / cylinder volume (L) 450 350 350/420
Tire Size 13.00-25 14.00-25 14.00-25

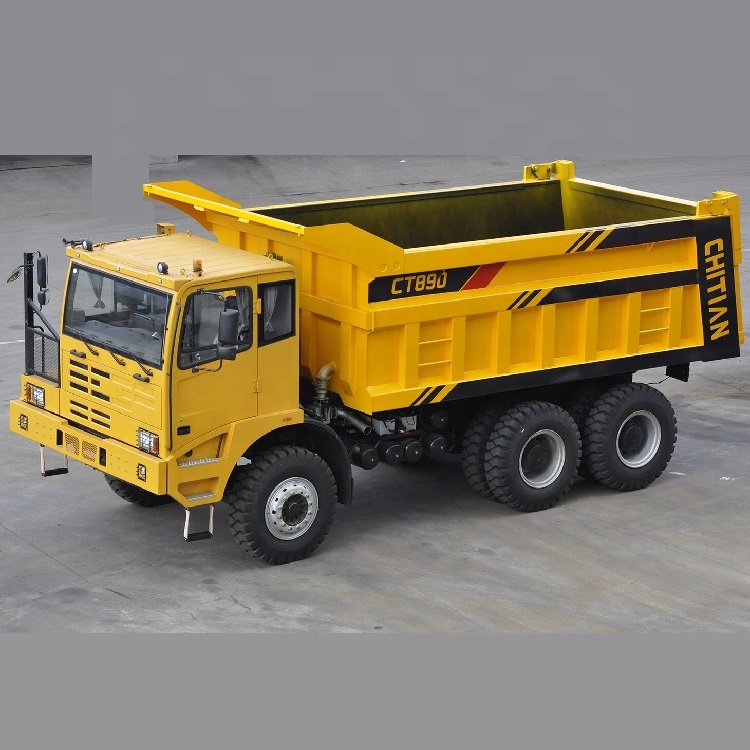

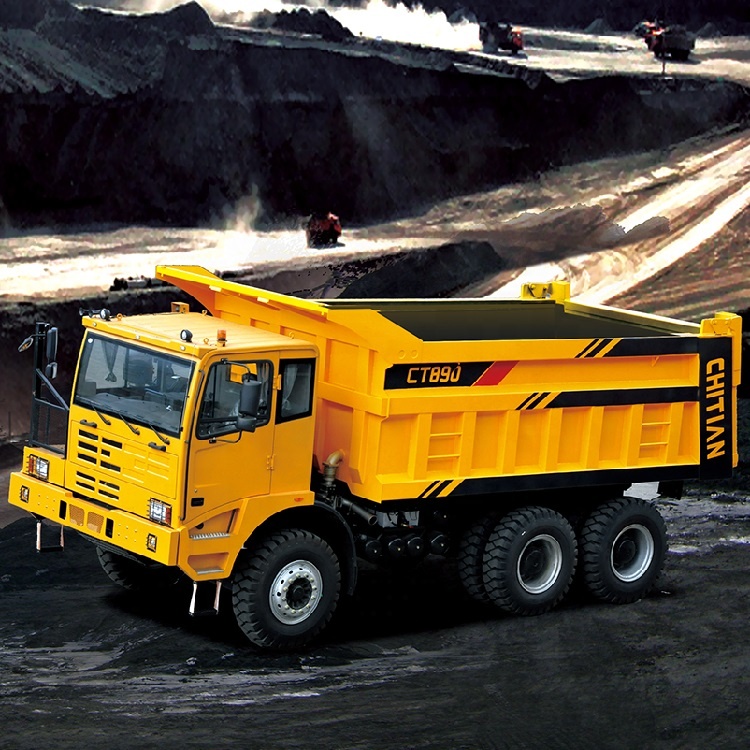

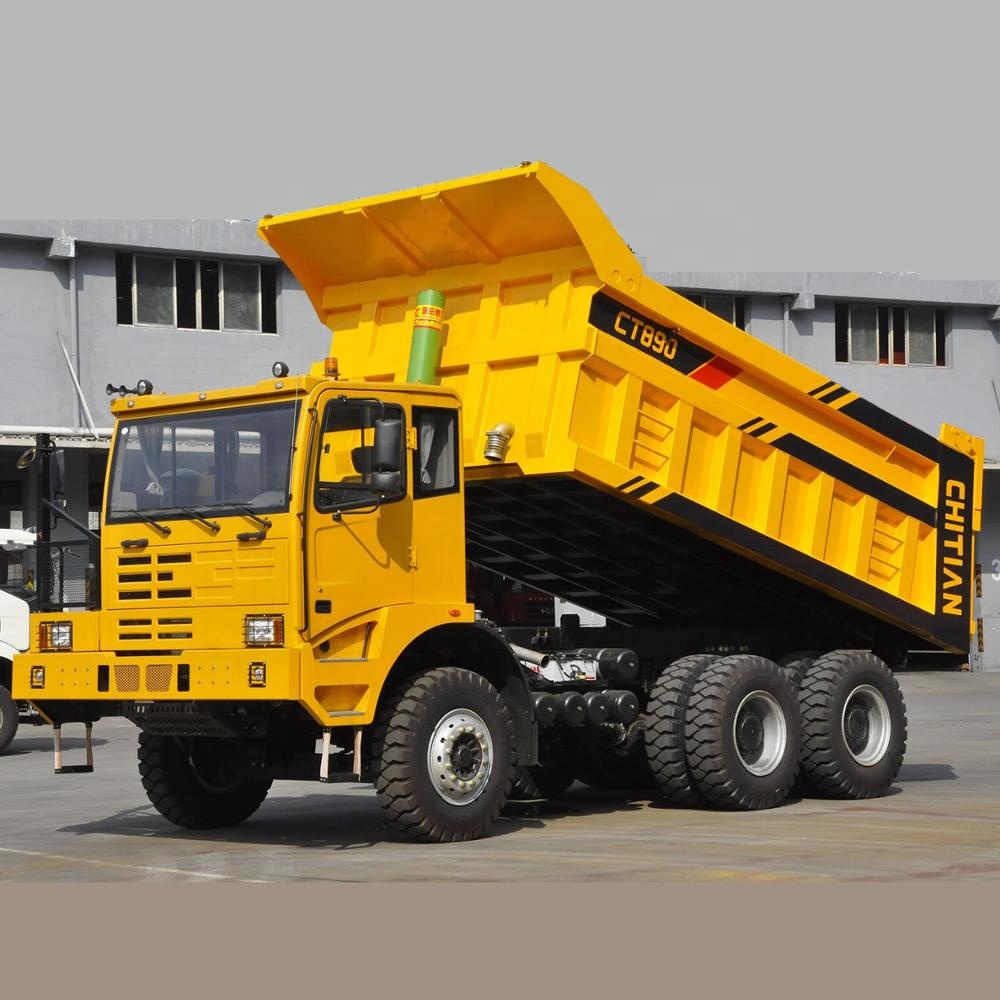

Product Picture



CT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump TruckCT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump TruckCT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump TruckCT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump Truck



Product Details



CT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump Truck

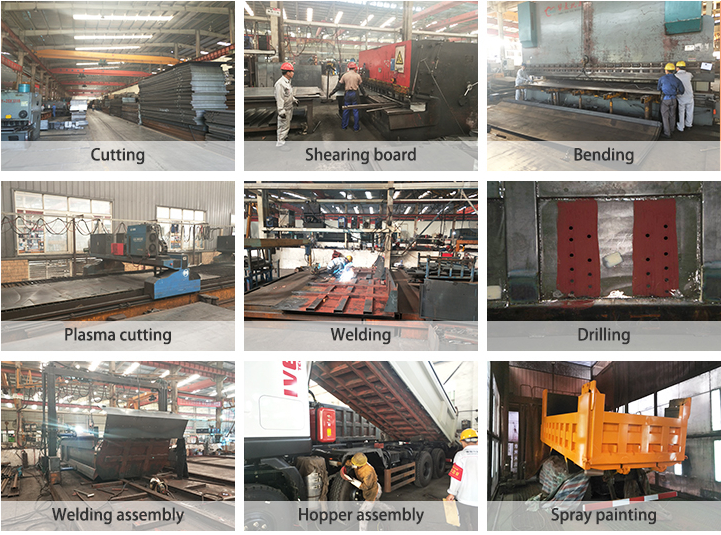

Production Process



CT890 Off - Road Heavy Duty Dump Truck For Mining 50 Ton Euro 3 / 6X4 Dump Truck
