Sinotruk HOWO 8x4 Fuel Tanker Truck For Liquid Gas Diesel Oil Transportation
Product description
Oil tank truck/Fuel tank truck:
Oil tank truck, also known as mobile fuel trucks, fuel tankers, fuel tank truck, oil tankers,oil transport truck and edible oil tankers.
According to different uses and use environments, there are a variety of refueling or oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. Can separate warehouse, separate different oil products, tank body set up multiple anti-wave partitions. Can be designed as a chemical transportation vehicle.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances.
The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, aluminum alloy.
Product parameter
| Item | UNIT | Parameter |
| Vehicle model | | HOWO tanker truck dimension 30CBM |
| Chassis model | | ZZ1251M5241C |
| Overall dimension | mm | 10900×2500×3350 |
| Compartment dimension | ×× |
| | G W | kg | 25000 |
| Rated payload | 12000 |
| Curb weight | 12870 |
| Approach/departure angle | ° | 16/10 |
| Engine | Hp | 260 |
| Max speed | km/h | 85 |
| Front/rear suspension | mm | 1272/2378 |
| Engine type | WD615.92 | Displacement | 7255(ml) |
| Tire specification | 11.00R20 | Tire No. | 8*4 |
| Wheelbase | 1860+4140 | Front tread | 1914/1914 |
| Axle Load | 1860+4540+1350 | Rear tread | 1860/1860 |
| Operation control system | Electrically hydraulic control | Allowable passengers in cabin | 3 |
| Equipment | Meterial:5mm carbon steel. tanker piston and bobbin disk Tank can be separated to several unattached small tanks to fill different fuels. |
| Emission standard | GB3847-2005,GB17691-2005 Euro 3 |
| Warranty | 12 months, from the date of supply |
| Tank volume | 45000 liters |
Our service
1. Warranty Time; our warranty time is one year from the date of arrival at the destination,in normal use within 30000kh or within one year, we will repair for free, but the wearing parts and electrical parts are not included. After one year, we only charge cost when the question occurs;
2. Tracking service: Because we are factory, we will provide you lifelong tracking service and solve your question at any time, let you feel relieved;
3. Production Ability: We can manufacture more than 300 type Special purpose Truck, Trailer, etc, or provide SKD or CKD. What’s more, we are developing more high quality truck. We also can customize the truck according to your personalized requirements such as material, size, color, paint, logo, etc.

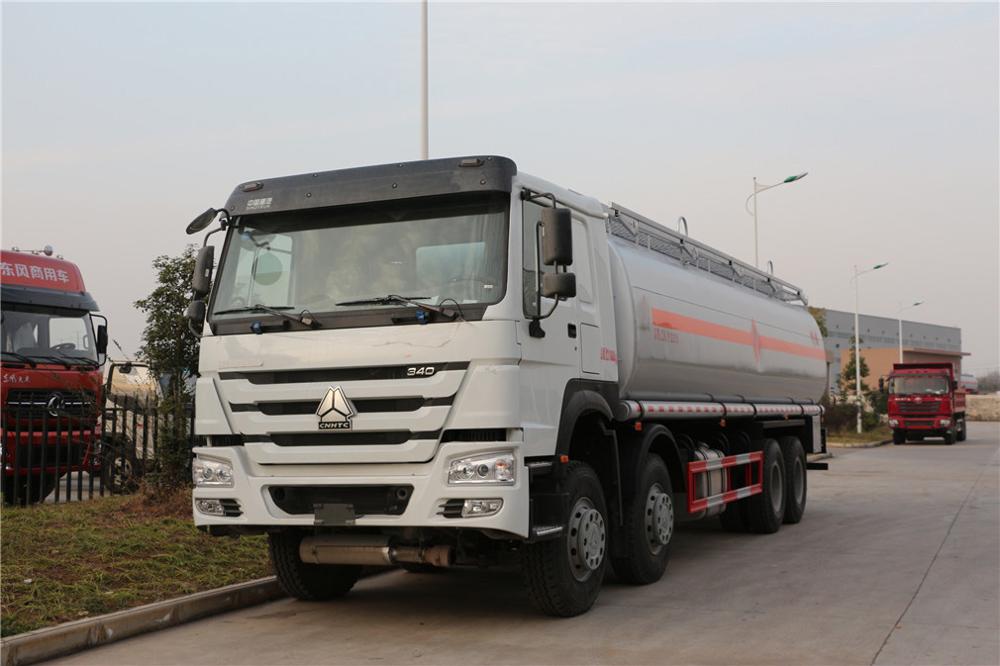

Product photo
Product Tags:
|
|
Sinotruk HOWO 8x4 Fuel Delivery Tanker For Liquid Gas Diesel Oil Transportation Images
|
