HBXG SD7N 230HP Engine Crawler Bulldozer With 404mm Min. Ground Clearance
Product Overview
1.The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
2. The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
3. The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
4. The single control lever can control all blade actions;
5. The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
6. The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
7. The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
8. The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
9. Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
FAQ
1.Why chose you?
a.We are manufacturer, our products have excellent quality and competitive price.
b.We have good after-sales services,you can find us at per 24 hours.
c.Strictly testing and checking before shipping.
2.How to deal the order?
a.Payment terms: T/T 30% as deposit, and 70% before delivery.
b.We'll show you the photos of the products and packages before you pay the balance.
3.Are you interested in dealership with local company?
Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
4.What is your warranty policy?
We can supply one year warranty for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
5.How do you make our business long-term and good relationship?
a.We keep good quality and competitive price to ensure our customers benefit.
b.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Product paremeters
Dozer Tilt
(not including ripper) Operation weight (Kg) 24300
Ground pressure(KPa) 71.9
Track gauge(mm) 1980
Gradient 30°/25°
Min. ground clearance (mm) 404
Dozing capacity (m³) 8.4
Blade width (mm) 3500
Max. digging depth (mm) 498
Overall dimensions (mm) 5982×3500×3402
(Including ripper) 7616×3500×3402
Engine
Type CUMMINS NT855-C280S10
Rated revolution (rpm) 2100
Flywheel power (KW/HP) 169/230
Max. torque (N•m/rpm) 1097/1500
Rated fuel consumption(g/KW•h) ≤235
Undercarriage system
Type The track is triangle shape.
The sprocket is elevated elastic suspended.
Number of track rollers (each side) 7
Pitch (mm) 216
Width of shoe (mm) 560
Gear 1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max. system pressure (MPa) 18.6
Pump type High perssure gears pump
System output(L/min) 194

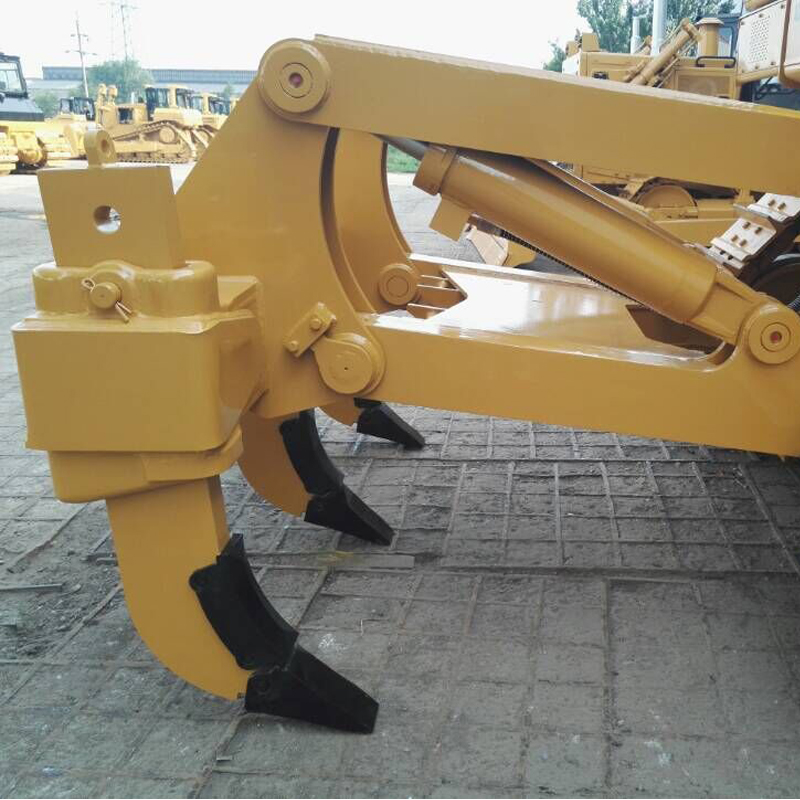

Product pictures
