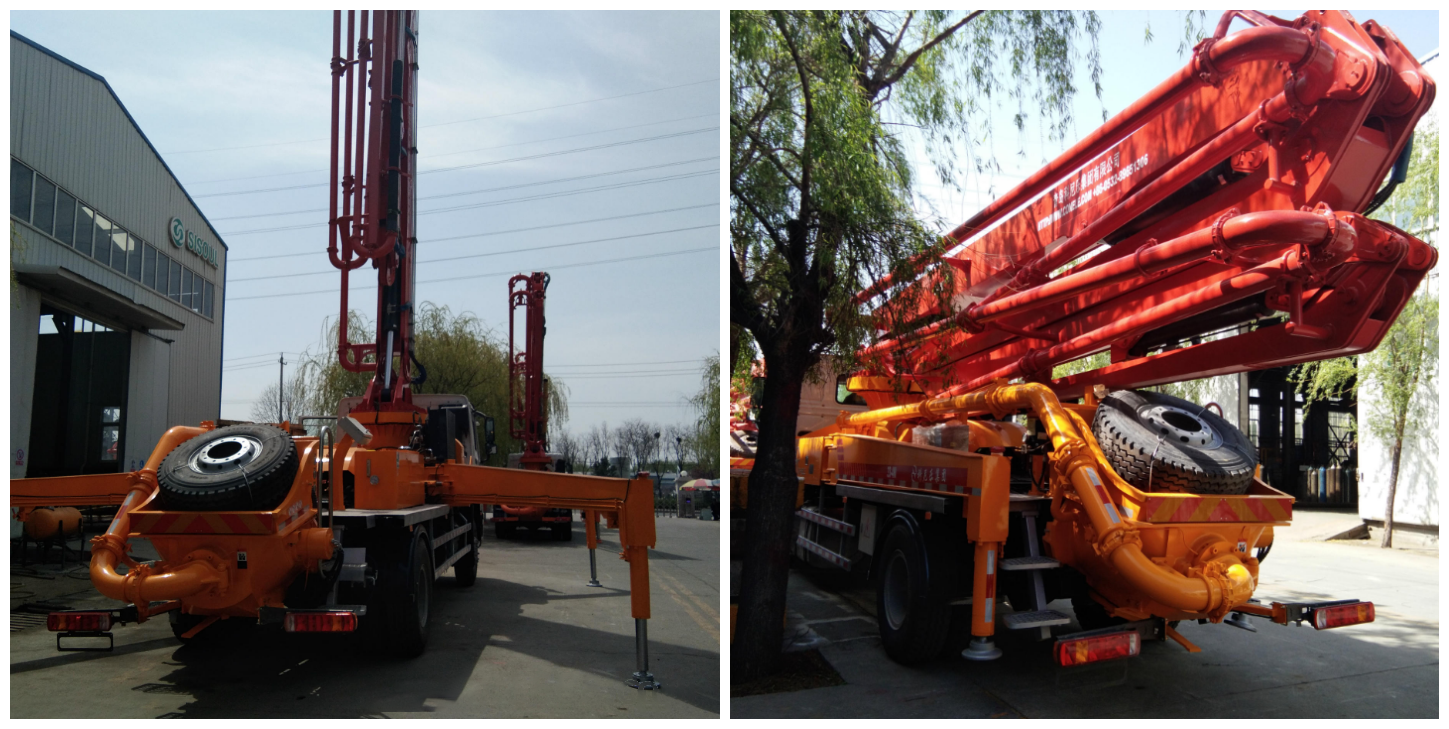

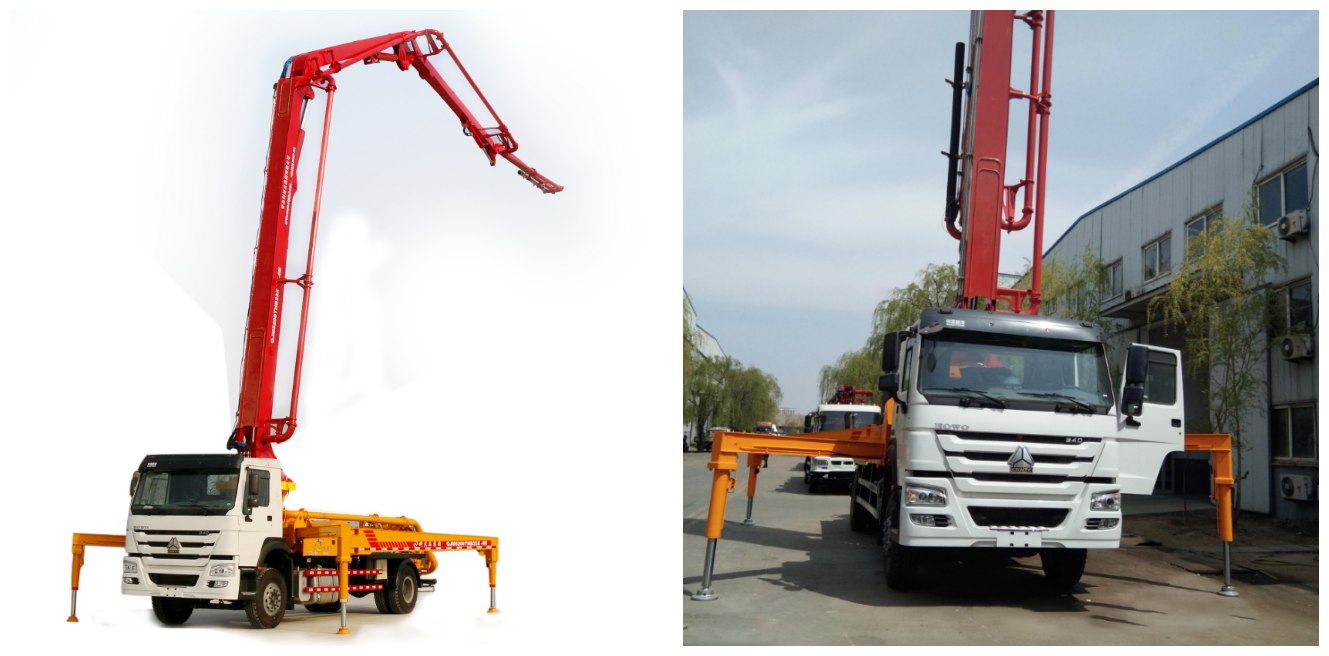

SINOTRUK 6X4 Euro2 Concrete Pump Truck With 32MPa Rated working pressure
Description:
Designed on the basis of accurate data from finite element analysis and dynamics simulation analysis, the boom system has a scientific structure and excellent performance. Besides, stress and strain tests are conducted by the national test center to verify the agreement between the calculation and analysis result of the boom structure and its actual working condition. The design of FOCUS Pump Truck adopts an international purchase strategy, and all its key components are world-famous brands which have the following features:
Packing:
The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.
Competitive Advantage:
1.Adopt HW76 Cab single bunk,new type seat,adjustable steering wheel
2.EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
3.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.
4.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.
5.Rich experience and well after-sale service.
| specification |
| Pumping system | Max. Theor. output(high/low pressure) | m3/h | 66/111 |
| Max. Theor. concrete output Pressure(high/low pressure) | MPa | 10/6 |
| Rated working pressure | MPa | 32 |
| Pumping frequency(high/low pressure) | min-1 | 19/32 |
| Hopper capacity | L | 600 |
| Filling height | mm | 1200 |
| Hydraulic system type | | Open loop |
| Distribution valve | | S valve |
| Oil cylinder dia.×stroke | mm | φ125×1400 |
| Concrete cylinder dia.×stroke | mm | φ230×1400 |
| Hydraulic oil cooling | | Air cooling |
| Recommended concrete slump | cm | 12~23 |
| Max. aggregate dimension | mm | 40 |
| Placing boom | Structure type | | 35-5RZ |
| Placing depth | m | 35 |
| Horizontal distance | m | 31 |
| Placing depth | m | 26 |
| Slewing angle | | ±270° |
| Pipe diameter | mm | 125 |
| End hose length | mm | 3000 |
| Min. height of opening placing boom | mm | 9000 |
| Outriggers span (front×rear×side) | mm | 6140×7606×8446 |
| Chassis and the whole machine | Chassis model | | ZZ5207M521GE1 |
| Wheelbase | mm | 5200 |
| Engine type | | MC07.28-50 |
| Engine power | kW | 206kw |
| Oil tank cubage | L | 400 |
| Tail gas exhaust standard | | EURO 2 |
| Overall dimensions | mm | 9900x2496x3700 |
