Road Construction Horizontal Directional Drilling Machine Max Torque 2235Nm

Brand Name : Goodeng

Model Number : GS50-LS

Certification : CCC/ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 30-45 work days

Packaging Details : Nude

Supply Ability : 200 Set/Sets per Month

Engine Power : 43KW

Weight : 3650kg

Bit Type : Drag Bit

Drilling Mode : Rotary

Max Torque : 2235Nm

Specification : 3870*1300*1470

HS Code : 843041

Drill rod size : 42mm

Contact Now

China GS50-LS Road Construction Horizontal directional drilling machine Max Torque 2235Nm



Product description

1.The Japan Yanmar engine ensures sufficient power support to ensure stable machine performance, low fuel consumption and low noise for urban construction.

2,The power head rotation is driven by the American high-torque Eaton motor, which is stable in performance and achieves infinitely variable speed. The push-pull motor also adopts the American Eaton motor to achieve stepless speed change, and the machine work speed is far ahead in the same industry.

3.The 42*1800mm drill pipe allows the machine to be adapted to smaller construction areas.

4.The machine structure is simple in design, with low failure rate and easy maintenance.

5,Rotary and push-pull motors use load-sensitive control systems and internationally advanced hydraulic components. The independent cooling system ensures high-efficiency construction and high performance reliability.


Product parameter


Item Name Specification Qty


EXW Price
(USD)

 Note
Main Rig Engine 4TNV98T-SYU(43Kw/2200rpm) 1set   Japan YANMAR
Hydraulic Pump HA10V/JHP 1set HIGH-TECH or purchuse
Hydraulic Motor Rotation motor6K-390 1set American EATON
push & pull motor 2K-245 2pcs American EATON
Mud Pump 75L/min 1set Leike
Drill rod box   1set Self-made or purchuse
Auto anchor   1set Self-made or purchuse
Accessories Rotary drive sub   1pcs Free Self-made or purchuse
Anchor nail   2pcs Self-made or purchuse
Mud pump accessories   1set purchuse
Diesel tool kit

Including diesel filter


 1set purchuse
Filter Oil input 1set purchuse
Easy-worn accessories Composed gasket /Seal ring/Grips 1set purchuse
Accompanying documents Manual , certificate of quality and so on 1set Self-made

Standard
tools

 Guide bit   1set   Self-made or purchuse
Guide bit palm   1pcs Self-made or purchuse
Swivel   1set Self-made or purchuse
Male/Female connector   1set Self-made or purchuse
Sub saver   1pair Self-made or purchuse
Integral drill rod Ф42×1800mm 50pcs   Purchuse
Total   Exw-price     USD DOLLARS

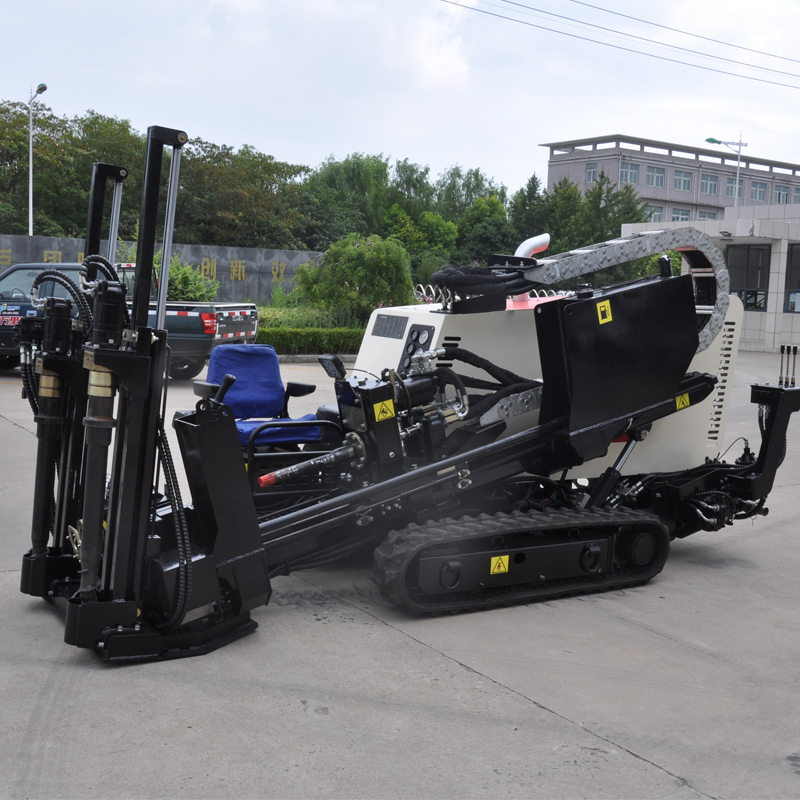

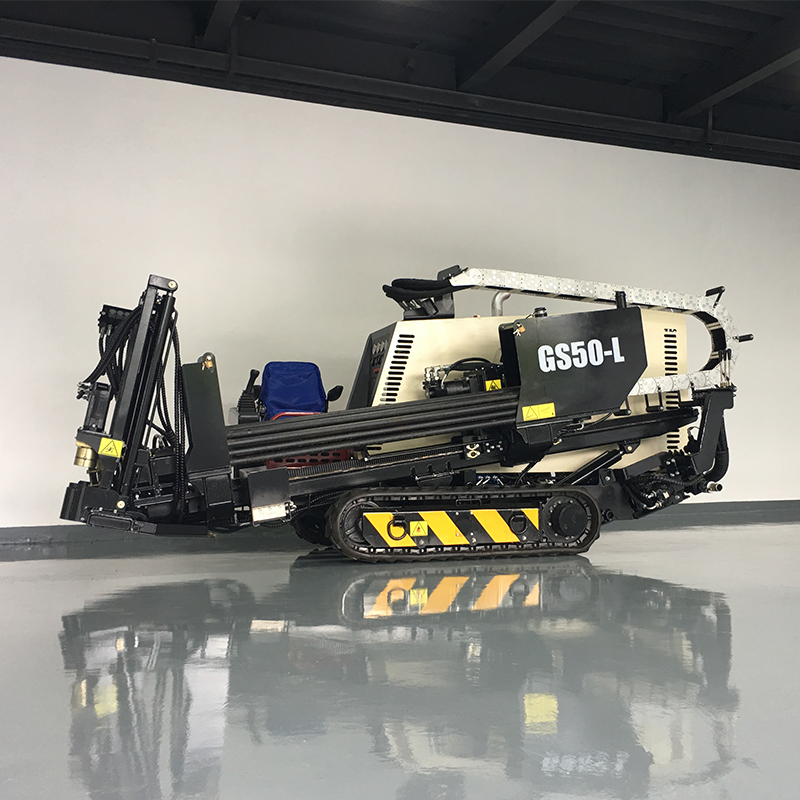

Product picture

Road Construction Horizontal Directional Drilling Machine Max Torque 2235NmRoad Construction Horizontal Directional Drilling Machine Max Torque 2235NmRoad Construction Horizontal Directional Drilling Machine Max Torque 2235NmRoad Construction Horizontal Directional Drilling Machine Max Torque 2235NmRoad Construction Horizontal Directional Drilling Machine Max Torque 2235Nm
