Orange Color BEIBEN Brand 380hp 2638S 6x4 Tractor Truck Head Left Hand Drive for Logistics
Main Features:
The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now our trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.
All series products of Bei Ben Trucks are well received by customers both at home and abroad. We welcome more friends to cooperate with us.
Main Specs:
| Tractor Truck | Driving type: 6x4 Based on MAN Design platform |
| Cabin | BENZ technology cab, single sleeper, Manual Window, with air-conditioning |
| Engine | Diesel, 4-stoke Direct injection,6-cylinder in line, radiator, Turbo-charging. |
| Model: | WD615.38 | European technology WEICHAI |
| | MAX Horse power: | 380HP |
| | Displacement(L): | 9.726liter |
| | Max torque: | 1600NM@1200~1600 |
| | Bore/stoke: | 125mm/155mm |
| | Fuel consumption: | 197g /kwh |
| Gear box | | Applied American technology |
| | Model: | FAST 12JS160TA |
| | Speed: | 12speed,2reverse Max torque:1600NM |
| Axle(front/rear) |
| Front axle | Benz technology 6.5ton front axle |
| Tandem | 13TON Benz strengthened axle (punching-welding axle housing) |
| (Driving axle) | double reduction driving axle, inter-wheel differential lock |
| Clutch | D430 diaphragm type |
| Brake | Service brake: Double circuit pneumatic brake |
| | Parking brake: Spring-Power drum brake |
| Steering | ZF technology, driver sit at the left hand side |
| Electric Equipment |
| | Operating voltage: | 24Vnegative grounded |
| | Starter: | 24V,5.4KW |
| | Alternator | 28V,758W |
| | Battery voltage | 12V/135Ah,cigar lighter |
| Frame | 300mmx80mmx 8mm (inner: 275mm*70mm*5 mm ) |
| Tyre | 10+1 spare tyre with wheel |
| | 315/80R22.5 Rim:8.5-20 |
| Suspension system: Leaf spring type |
| | Front/Rear | 9/13 |
| Overall dimension(mm): 6800x2500x3180(Length x width x height) |
| Wheelbase | 3200+1350mm |
| Track: | |
| | Front/Rear | 2045/1800/1838 |
| | Approach/Departure angle | 16/60 |
| | Front /Rear overhang | 1410/840 |
| | Max speed | 110km/h |
| Kerb weight: | 8450kg | Diesel tank | 300L |

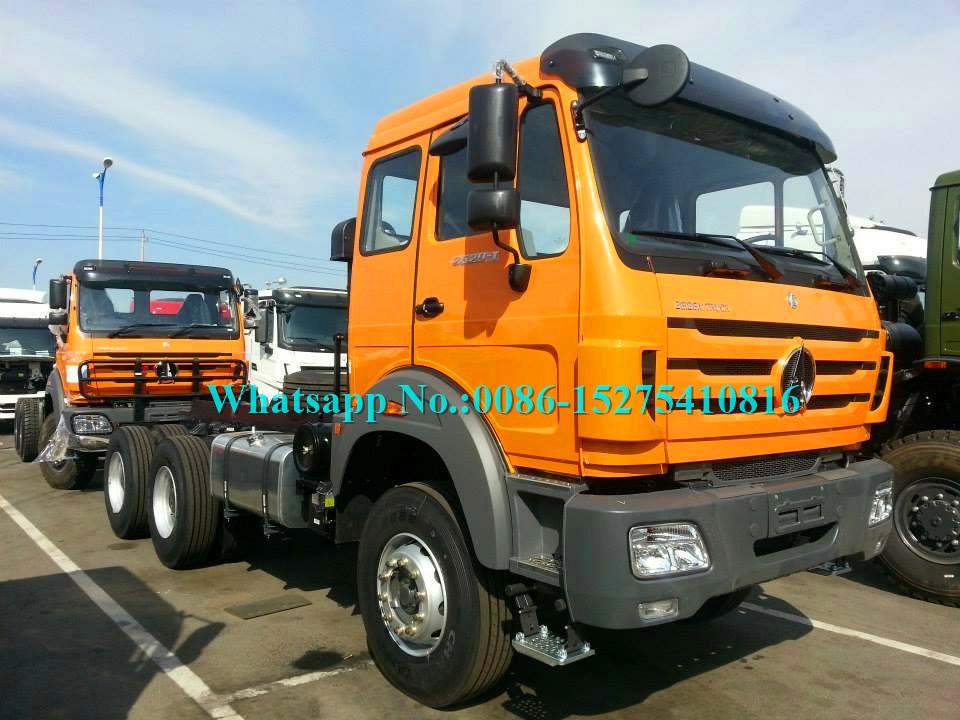

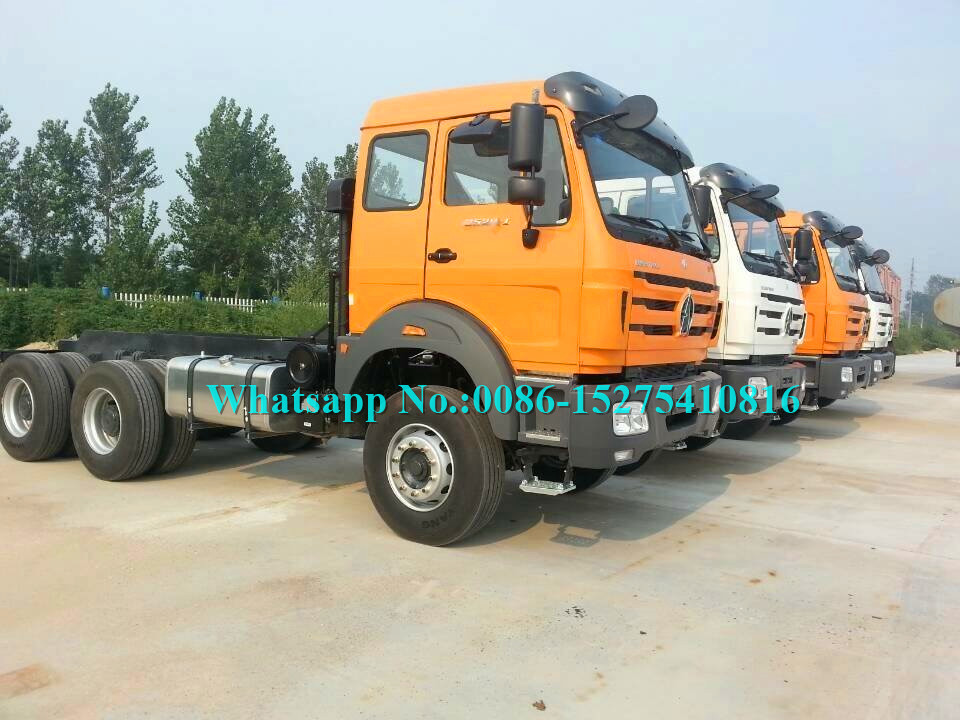

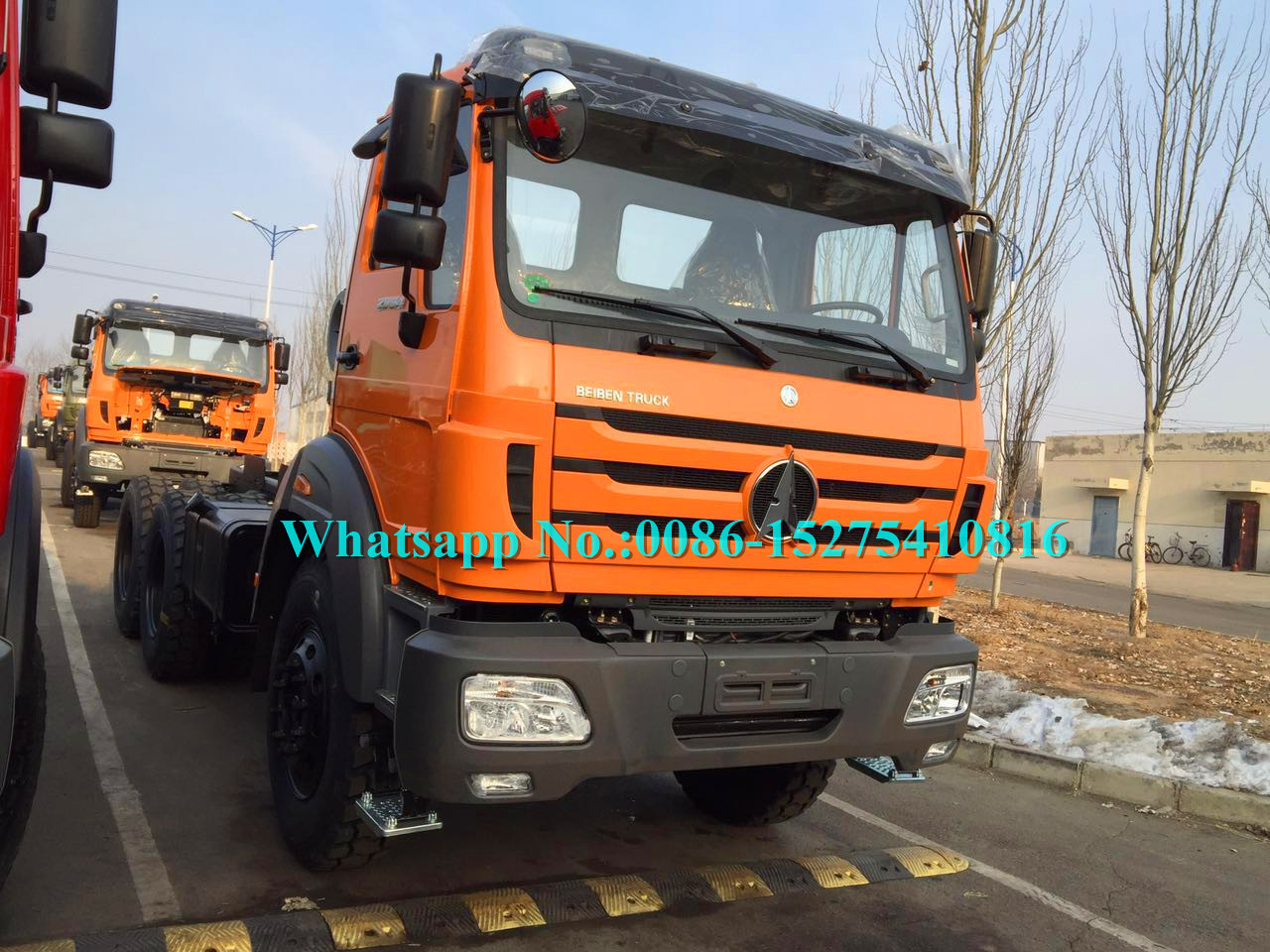

Products Photos:
