266hp HOWO Euro II Heavy Cargo Truck 4x2 For Highway Transportation ZZ1167M5011W

Name: 266hp HOWO Euro II Heavy Cargo Truck 4x2 For Highway Transportation ZZ1167M5011W
Brand: SINOTRUK HOHAN
Price: 1 USD

Buy cheap 266hp HOWO Euro II Heavy Cargo Truck 4x2 For Highway Transportation ZZ1167M5011W product

Brand Name : SINOTRUK HOHAN

Model Number : ZZ1167M5011W

Certification : ISO/CCC

Place of Origin : SHANDONG

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500 units/month

Delivery Time : 30-45 work days

Packaging Details : Nude

Model : ZZ1167M5011W

Maximum authorized total mass(kg) : 16000kg

Dimension : 8770x2496x3958mm

Displacement (L) : 9.726

Maximum driving speed (km/h) : 102

Cargo Sizes : 6630x2280x800mm

Contact Now

ZZ1167M5011W HOWO 4x2 266hp Euro II cargo truck with HW15710 TRANSMISSION

Description:

The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.The engine adopt 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection.Adopting full hydraulic transmission, it can bring the power of engine into full play amply.Adjust the output torque automatically according to loads change, and it can achieve continuously variable transmission.Rich experience and well after-sale service.

Packing:

Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.

Competitive Advantage:

1. The best quality standard guaranteed
2. Product upgrading and expansion of species
3. Good quality with competitive prices.

5. The price is competitive.

6. Excellent and high-quality control
7. Long lasting working life time.

Vehicle Specifications	Model		ZZ1167M5011W
	Traction		4x2
	Power		266HP
Weight Parameter	Complete Vehicle Kerb Mass(kg)		8000
	Maximum authorized total mass(kg)		16000
Dimension Parameter	External Dimensions(mm)	Length (mm)	8770
		Width(mm)	2496
		Height(mm)	2958
	wheelbase(mm)		4600
	Internal cargo Sizes	Length(mm)	6630
		Width(mm)	2280
		Height(mm)	800
Performance Parameter	Maximum Speed(km/h)		102
	Maximum Gradeability(%)		>40
	Turning diameter(m)		<16
Recommended Configuration	Engine	Engine Type	WD615.62
		Rated power(kW)/Rev(r/min)	196/2200
		Torque(N*m)/Rev(r/min)	1300/1100-1600
	Transmission		HW15710
	Clutch(mm)		430
	Axle	Front Axle	HF7
		Rear Axle	ST16
	Fuel Tank(L)		300
	Track(mm)		2022+1830
	Front overhang/rear overhang(mm)		1500/2270
	Tyre		12.00-20
Electrics	Operating voltage:24V,negative grounded 24V,7.5KW.Starter:24V,7.5 Kw 28V,1500W.Alternator:3-phase,28V,1500 W 2x12V,165Ah.Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light
Brake system	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake

266hp HOWO Euro II Heavy Cargo Truck 4x2 For Highway Transportation ZZ1167M5011W

Product Tags:

comercial cargo truck

cargo transport truck

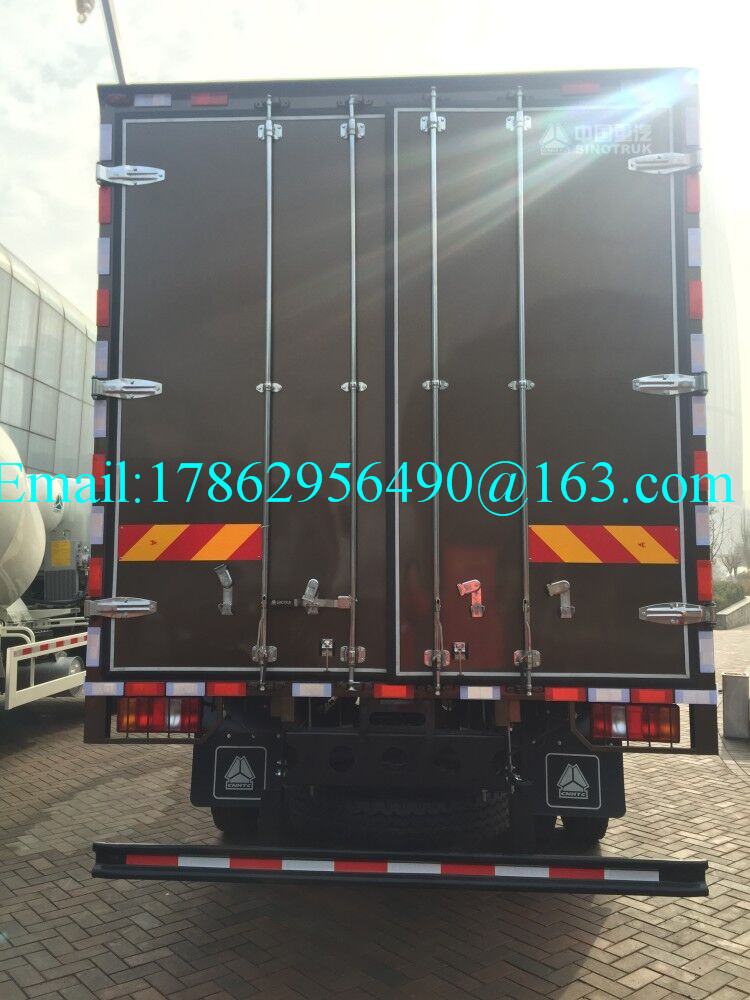

266hp HOWO Euro II Heavy Cargo Truck 4x2 For Highway Transportation ZZ1167M5011W Images
