Product Description:
1. European standard cabin, big living room design concept;
2. High safety, high reliability , high comfort ,low curb weight ,low fuel consumption ,low maintenance cost;
3. FAWDE/WEICHAI engine ,FAW/FAST/EATON/ZF gearbox , FAW/PX axle, high reliability;
4. Apply to long distance & high efficiency transportation.

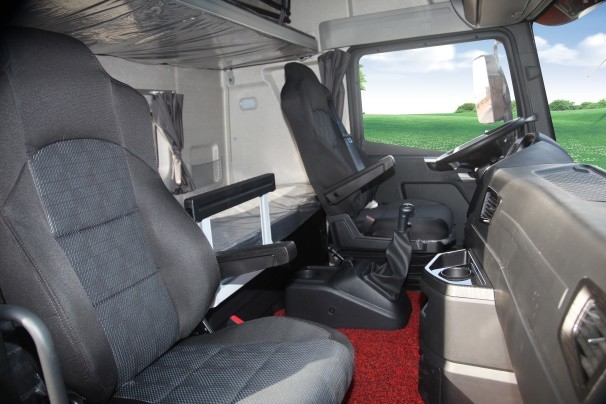

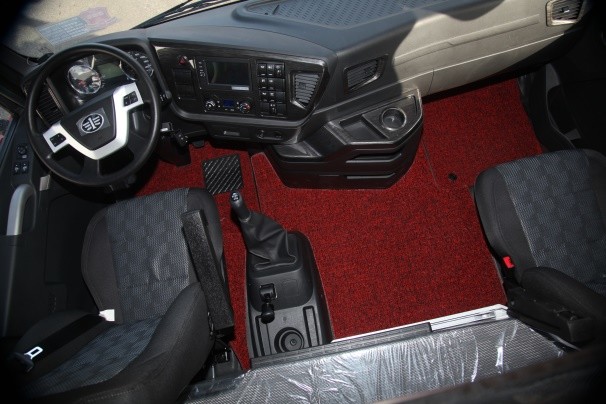

FAW JH6 can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers.JH6 is the flagship heavy truck platform produced by faw jiefang Qingdao automobile factory. Its unique flat floor and corridor cab greatly improve the comfort of long-distance driving and completely embody the concept of jiefang truck mobile home.
Product Specifications:
| ass | Curb Weight of Chassis (kg) | 8870 |
| Axle load distribution (kg) | Front | 4650 |
| Rear | 4220 |
| Curb weight (kg) | -- |
| Gross vehicle weight (kg) | 25000 |
| MAX Axle Load distribution (kg) | Front | 6500 |
| Rear | 2*13000 |
| Max. drawing Capacity (kg) | 40100 |
| Total weight with trailer (kg) | 49000 |
| Max. Load Capacity(kg) | 16100 |
| Performances | Min. Steering Diameter (m) | 15.6 |
| Max. Speed (km/h) | 118 |
| Max. Grade ability (%) | 38 |
| Parking Brake Grade Angle (%) | 12 |
| Direct Shift Min. Stable Speed (km/h) | 35 |
| Direct Shift Accelerate Time (s) | 30 |
| Braking Distance (from 30km/h) (m) | |
| Fuel Consumption (l/100km) | 38 |
| Fuel Tank Capacity (L) | 800 |
| Frame | Type | Side rails, punching and riveted construction |
| Main Rail section | 300x80x8(mm) |
| Transmission | Model | ETO-20113 |
| Forward Shifts Ratio | iDL=13.94,i1=9.63, i2=7.60,i3=6.07, i4=4.85,i5=3.87, i6=3.06,i7=2.44,i8=1.95, i9=1.59,i10=1.25, i11=1.00,i12=0.80 |
| Reverse Shift Ratio | iDPR=18.86, RL=7.58,RH=3.11 |
| Rear Axle | Type | FAW Single Reduction 457 |
| Reduction Ratio | 3.7 |
| | Differential lock | Inter-axle differential |
Product Advantage :
1. The headlights adopt full-LED light sets. The headlights are all LED lights, such as high-light, low-light, steering light, outline light and daytime driving light. And the driving safety can be effectively improved.
2. The rear fender, dovetail cover and taillights are designed with emancipation modularization. The rear fender has a slight extension compared with the taillights, which can protect the taillights in collision.
3. Aluminum alloy rims are used before and after the tires, double bridge 12R22.5 vacuum tires, FAG oil lubrication wheel end, the longest maintenance mileage can reach 800,000 km.
4.The original Parker FH1000 fuel crude filter, with two-stage filter element, electric pump device and engine block filter element, can form three-stage filter, effectively protect the engine fuel system,achieved 100,000 km "long oil change interval" technology.
