2024 New Sinotruk 380HP 6*4 Tipper Truck HOWO Dump Truck In Stock

Product Categories
Shandong Global Heavy Truck Import&Export Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

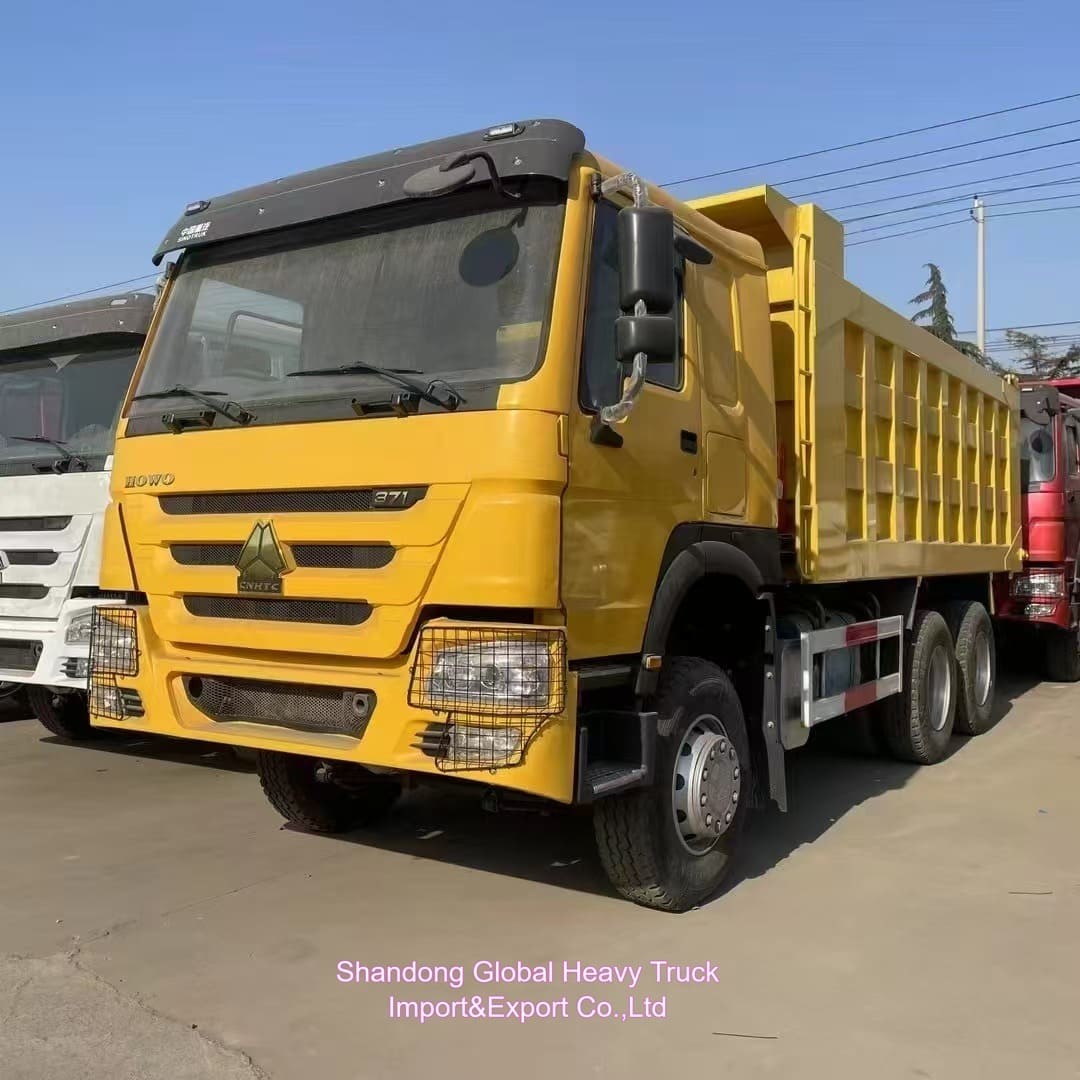

2024 New Sinotruk 380HP 6*4 Tipper Truck HOWO Dump Truck In Stock

Brand Name : howo

Model Number : howo-7

Certification : iso,ce

Place of Origin : China

MOQ : 1 pc

Price : NEGOTIABLE

Payment Terms : L/C,T/T

Supply Ability : 500 units/month

Delivery Time : 40 worker days

Packaging Details : nude

Model NO. : howo 6*4 dump truck

Transmission Type : Manual

Load Capacity : 50t

Drive Wheel : 6×4

Horsepower : 400hp

Tire Certification : ECE, GCC, ISO, DOT

Condition : New

Drive Seat : Air Suspension Seat

Contact Now

2024 New Sinotruk 380HP 6*4 Tipper Truck HOWO Dump Truck for Sale in Stock


Dump truck  is a special truck, which is characterized by automatic tipping device, mainly used for material transportation in civil engineering , mining , water conservancy and other fields, the core components of the dump truck include the vehicle chassis, the hydraulic lifting mechanism, the cargo compartment the force taking device, Among them, the hydraulic lifting mechanism is the key part of the dump truck used to dump the goods and the movement of the piston rod is controlled by the control system, so that the carriage can tip backward or sideways, so as to achieve the purpose of rapid unloading .


Detail Specification
Items
Dump truck
Dimension (mm)
8685x2496x3850mm
Overhang(front/rear) (mm)
1500x725mm
Wheel Base (mm)
3625+1350
Engine
Modle
WP 12.400E201
Emission
EURO II
Displacement(L)
11.896
Power
400hp/295kw.2000r/min
Type
Water-cooled, four strokes, 6 cylinders in line, turbocharged directly injection
Fuel Consumption(l/100km)
25L/100km


Axles
Front Axle Model
VGD95 axle, Capacity: 9000kg
Rear Axle
HC16 axle. Capacity:2X 16000KG
Ratio of rear axle
4.8
Electrical System
Battery
2x12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V
Brake System
Service brake
Dual circuit compressed air brake
Parking brake
Spring energy, compressed air operating on rear wheels
Auxiliary brake
Engine exhaust brake
Steering  System
Modle
ZF8118
Type
Hydraulic steering with power assistance
Singer sleeper with air condition , all-steel forward control, 55 degree hydraulic tiltable to the front, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereoradio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4 point support fully floating suspension and shock absorbers

2024 New Sinotruk 380HP 6*4 Tipper Truck HOWO Dump Truck In Stock
