Function:

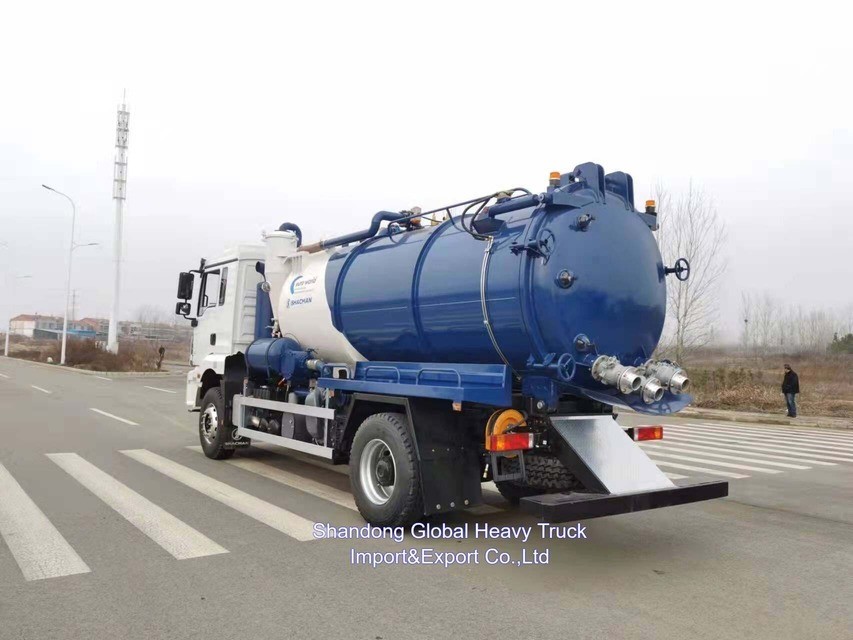

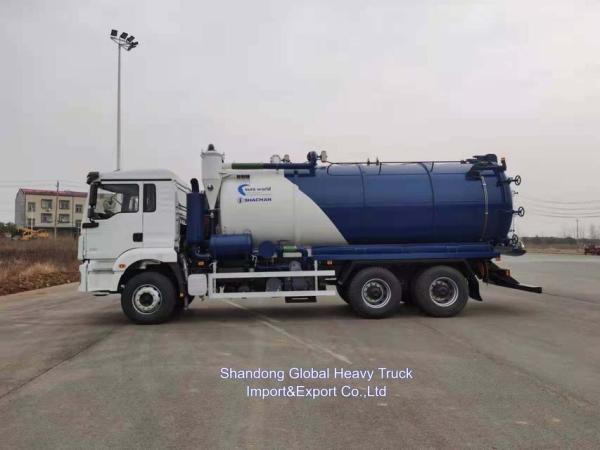

(1) Vacuum sewage suction truck (also called truck mounted sewage cleaner,vacuum cleaner truck ,vacuum suction truck ,vacuum suction tanker ,vacuum waste collection truck ,sewage suction truck,sewage vacuum truck ,waste vacuum truck ,sewer truck ,cesspit emptier ,gully emptier,etc.) is used to collect, transport and discharge liquid such as dirty water,sludge,septic,crude oil and solid stuff such as small stones,bricks as well.It is suitable for cleaning the sewer,cesspit,gully ,etc. It is widely used in environment and sanitation field.
(2)Accessory of sewage suction function :Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
(3) Vacuum tank capacity ranges from 3,000 Liters to 20,000 liters
Features:
a.Cylinder vacuum tank can be lifted hydraulically to 40-45 degree.Rear door can be opened and closed hydraulically.
b.Adopt EU vacuum pump (Italy brand) or equivalent China top brand double vacuum pumps,super powerful,highly efficient.
c.Pump can be operated by a hydraulic motor or by an auxiliary engine.
d.Overfill system with music horn is equipped ,preventing the vacuum pump damage from sewage water into vacuum pump when the tank is full.
e.Nice shape ,rational structure,durable and long service life. | Sewage Suction Vacuum Truck Technical Specification |
| Product Name | Sino howo
SEWAGE SUCTION TRUCK |
| Chassis Model | ZZ1250 |
| Fuel type | Diesel |
| Emission Standard | Euro 2 |
| Cabin | HW16 |
Whole Vehicle
main dimensions (mm) | Overall dimensions (LxWxH) | 9500*2400*3300 |
| Wheel base | optional |
| Min. ground clearance | 480 |
| Weight data (kg) | G.V.W | 25000 |
| Curb weight | 1200 |
| Max payload | 16000 |
Whole vehicle
main performance | Max. speed (km/h) | 95 |
| Max. slope of climb (%) | 30 |
Engine
| Model | WD615 47 |
| Maximum power | 336HP |
| Number of cylinders | 6 |
| Displacement (ml) | 9.726 |
| Gear box | Model | 9 |
| Number of gears | 9 forward gears &1 reverse |
| Axle | Front Load capacity (ton) | 7 |
| Rear Load capacity (ton) | 18 |
| Steering Wheel | left/right hand drive | LHD,RHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres&Quantity | | 10.00-20& 6+1 |
| Sewage Suction Vacuum Truck Special Tank Description |
Tank
| Material:high quality carbon steel
Structure:welding,vacuum tank,Cylindrical |
| capacity(L) | 16000 |
| thickness of material | 6mm |
pump
| type | vacuum pump |
| model | 65QZ-40/45N |
| flux(L/S) | 65 |
| rating speed(r/min) | 500 |
| shaft power(kw) | 4 |
| features | Low speed,low fuel consumption,low noise,high vacuum,high efficiency |
| manufacture | Hangzhou Weilong Pump Co.,Ltd,(Famous in China) |
| pipe | 65-100mm suction and discharge pipe |
| special function | suction time ≤ 5min,
effective suction range ≥ 8,
max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45 |
| equipment | Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment
Time for full suction less than 5min |
| hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc |
